NeoVolta Hybrid Inverter NV7600
$2,900.00

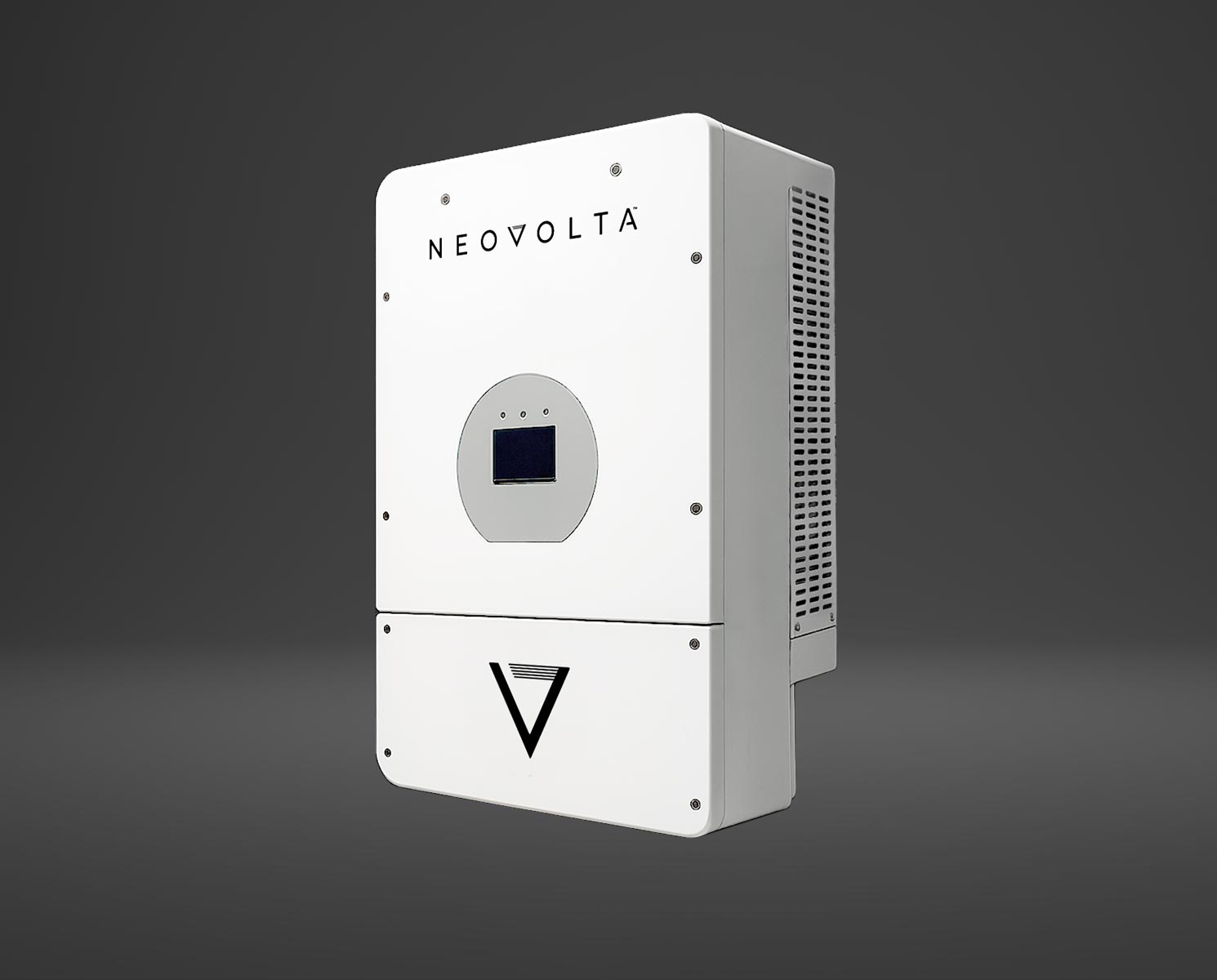

NeoVolta NV7600 Hybrid Inverter
The NeoVolta NV7600 is a California-engineered hybrid inverter that unites power conversion intelligence with rugged, all-weather resilience. Designed for both on-grid and off-grid operation, it automatically manages energy flow between solar panels, batteries, the grid, and backup generators—ensuring seamless performance even during outages. Its 9.2 kW AC output and 16 kW DC solar input capacity give homeowners and small businesses a robust backbone for renewable energy independence.
Inside its NEMA 3R aluminum enclosure, the NV7600 integrates dual MPPT trackers (each handling up to 26 A) to optimize energy harvest under shifting sunlight. It maintains a 97.6 % peak efficiency with >99.9 % MPPT accuracy, translating to minimal loss and maximum yield. With the ability to parallel up to 16 units for 120/240 V systems (or 10 for 208 V three-phase), it scales easily from residential applications to light commercial installations.
NeoVolta’s inverter architecture supports Lithium Iron Phosphate (LiFePO₄) batteries, featuring a 40–60 V range and 190 A charge/discharge current capability. Intelligent air cooling maintains performance from –40 °F to 140 °F, while a suite of embedded safety mechanisms—overvoltage, short-circuit, ground-fault, thermal, islanding, and optional arc-fault protection—ensures reliable, code-compliant operation. Communication ports (RS-485, RS-232, CAN) and integrated Wi-Fi/Ethernet/GPRS connectivity enable real-time system monitoring and remote diagnostics.
Certified under UL 9540, UL 1741 SB, and IEEE 1547, the NV7600 represents a 15-year commitment to safety, longevity, and performance
System Integration Summary
- The NV7600 Hybrid Inverter and NVPLUS Battery are UL 9540-certified as a paired energy-storage system.
- The inverter automatically manages grid-tie, off-grid, and generator modes, providing seamless backup power.
- The NVPLUS modules communicate directly over CAN for real-time BMS integration and safe charge/discharge control.
- Each stack of 16 inverters × 32 batteries can scale to ≈ 2.4 MWh / ≈ 120 kW system capacity.
NV7600 Inverter:
The NV7600 is a 7.6 kW hybrid inverter. It is warranted for fifteen (15) years from the date of installation when installed by a NeoVolta-certified installer. This warranty covers defects in materials and workmanship under normal operating conditions. It does not cover:
- Use with incompatible or non-certified batteries;
- Failure to follow installation and operational guidelines;
- Operation beyond published environmental limits.
