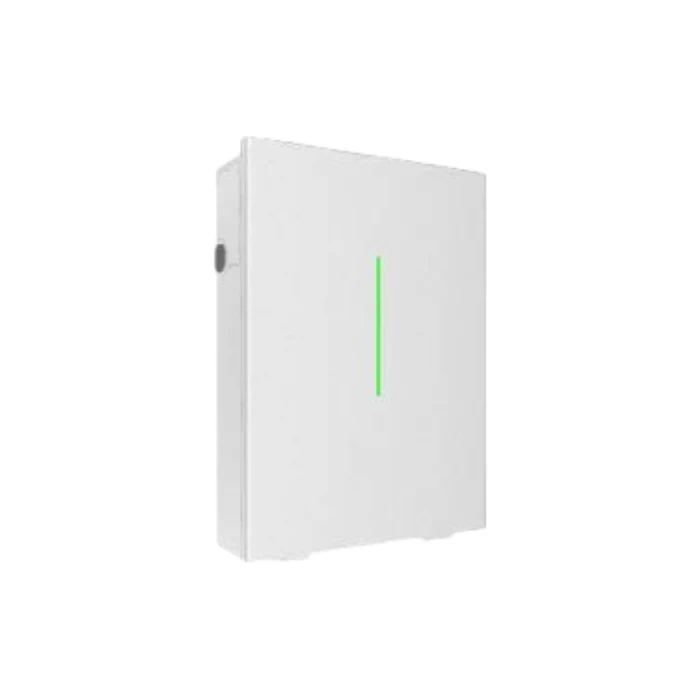

NeoVolta NVPLUS 10.2 kWh Battery

Enclosure: NEMA 3R (IP65)
Operating Temp: Charge 33–131 °F / Discharge –4–131 °F
Cycle Life: ≥ 6,000 cycles @ 25 °C, 90 % DoD to 70 % EOL
Energy Throughput: ≈ 32 MWh (0.5 C rate)
Installation: Wall or floor mount
Comms: CAN 2.0 / RS485
Warranty: 15 years or 6,000 cycles

$3,150.00

Description

NeoVolta NVPLUS 10.2 kWh Battery

The NVPLUS 10.2 kWh battery complements the NV7600 inverter as a durable, high-capacity energy storage solution engineered for longevity and safety. Constructed with Lithium Iron Phosphate (LFP) cells—renowned for their thermal stability and non-toxic chemistry—it delivers 9.2 kWh of usable energy at a 51.2 V nominal voltage. Its integrated BMS (Battery Management System) continuously monitors temperature, voltage, and current to ensure optimal charge balance and lifespan across thousands of cycles.

Each NVPLUS module can operate independently or in parallel—up to 32 units, yielding an aggregate capacity of over 326 kWh. It supports 240 A peak discharge and 198 A maximum charge currents, enabling high-demand backup or load-shifting scenarios. Housed in a NEMA 3R (IP65)-rated casing for outdoor or indoor installation, the NVPLUS operates reliably from –4 °F to 131 °F and includes a 125 A four-pole DC breaker for additional protection.

Its compact 23.6 × 32.7 × 7.9 inches design and 107 lb weight make installation flexible—wall-mounted or floor-mounted—while front-panel LED indicators communicate charge state and operating status. With a rated 6,000-cycle life (at 90 % depth of discharge) and 32 MWh energy throughput, the NVPLUS is built to endure more than 15 years of daily cycling

Features
